Simple LED Matrix Library Documentation
A library designed to allow for an easy and quick experience programing an LED matrix with an Arduino, even with little prior knowledge of coding or electronics.

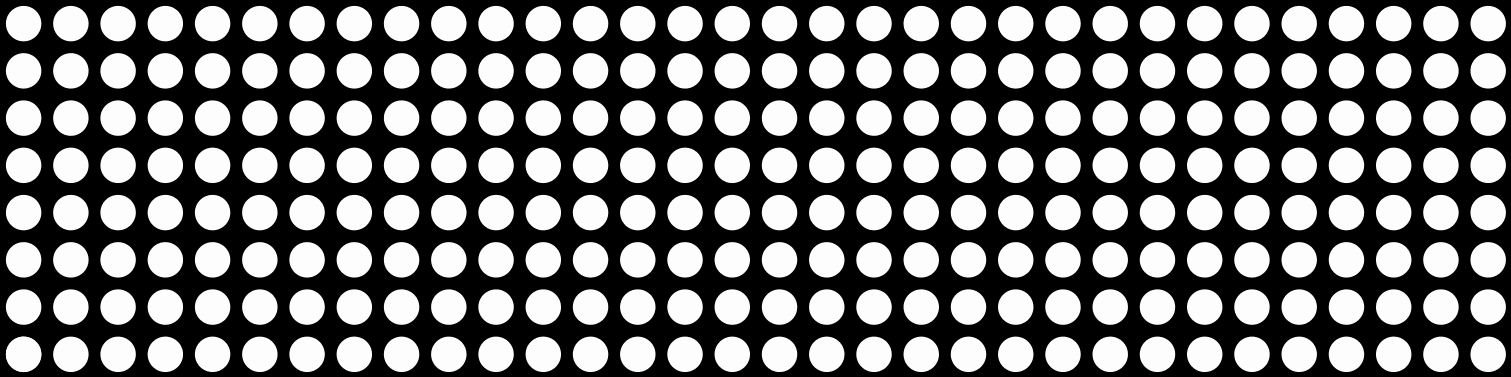

Train goes brrrr
- Todo:
Create more examples.
Add full support for the MAX7221 chipset.
Installation
To install the library, the prefered method is by using the Arduino's Library Manager. Simply looking for simple led matrix should bring up this library. THe other way to install this library is to install it as a ZIP library downloaded from the Github repository.
Wiring
On the hardware side, wire the Arduino to the LED matrix in the following fashion
| Arduino Pinout | LED Matrix Pinout |
|---|---|
| VCC | VCC |
| GND | GND |
| D11 (Fixed) | DIN |
| D13 (Fixed) | CLK |
| D4 (Adjustable by software) | CS |
